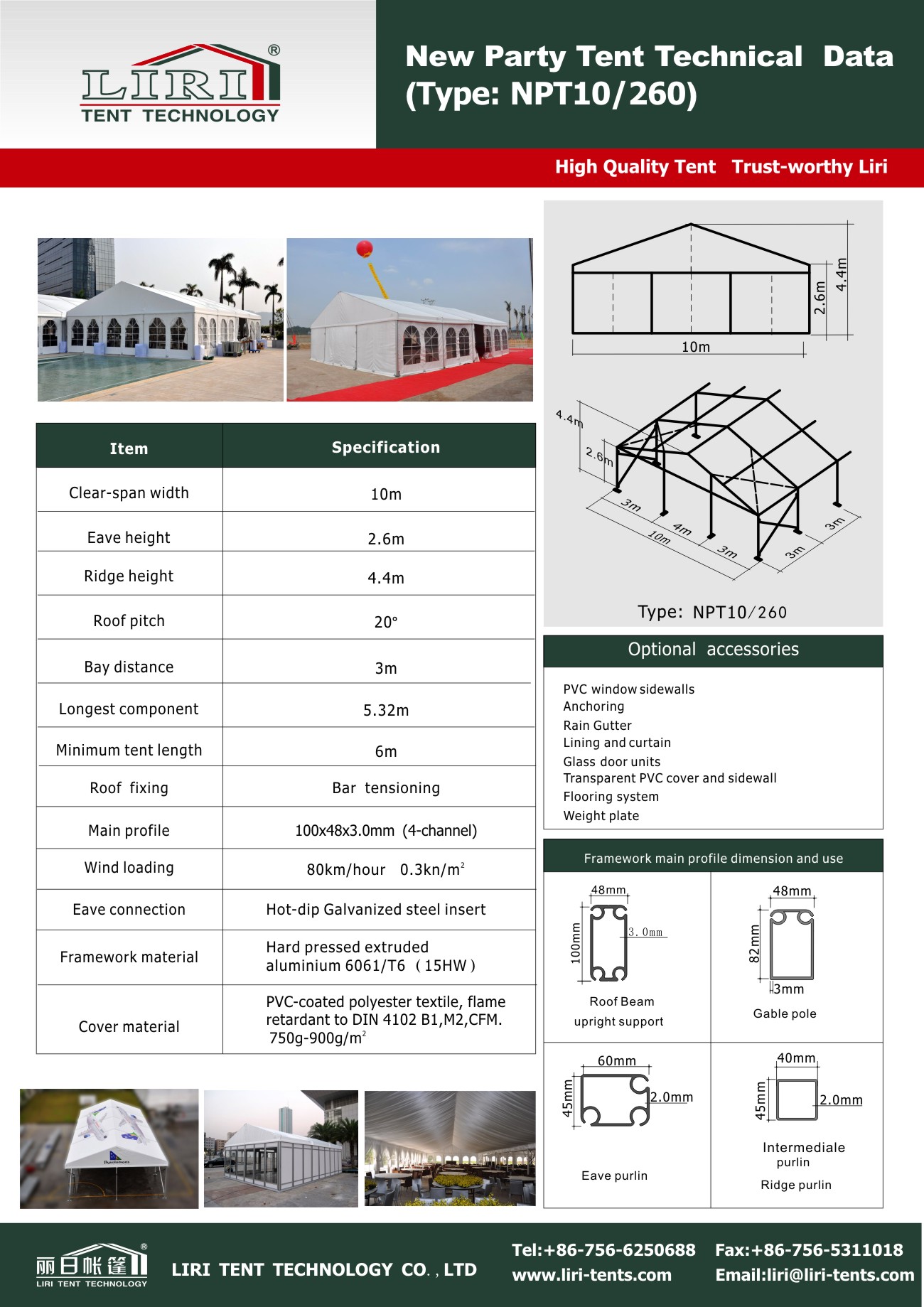

Specification of 10 x 20 White Party Tent with Sidewalls:
The NPT series are available in width in 5m, 6m, 8m, 9m, 10m, and the length is no limit that it can be increased or decrease by 3m.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| NPT | 3m/9.8′ | 3m/9.8′ | 2.6m | 3.16m | 100x48x3mm(4-channel) |
| NPT | 4m/13′ | 3m/9.8′ | 2.6m | 3.35m | 100x48x3mm(4-channel) |
| NPT | 5m/16.4′ | 3m/9.8′ | 2.6m | 3.52m | 100x48x3mm(4-channel) |
| NPT | 6m/19.7′ | 3m/9.8′ | 2.6m | 3.71m | 100x48x3mm(4-channel) |
| NPT | 8m/26.2′ | 3m/9.8′ | 2.6m | 4.05m | 100x48x3mm(4-channel) |
| NPT | 9m/29.52′ | 3m/9.8′ | 2.6m | 4.24m | 100x48x3mm(4-channel) |
| NPT | 10m/32.8′ | 3m/9.8′ | 2.6m | 4.4m | 100x48x3mm(4-channel) |
| NPT | 12m/39.4′ | 3m/9.8′ | 2.6m | 4.76m | 100x48x3mm(4-channel) |
| The length can be extended by 3m bay such as 6m,9m,12m,15m…Customized size is available. | |||||
Material of 10 x 20 White Party Tent with Sidewalls:
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Accessories of 10 x 20 White Party Tent with Sidewalls:
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
