Product Description
outdoor sport outdoor teepee tent
Specification of outdoor sport
|
Type |
Span Width |
Bay Distance |
Eave Height |
Ridge Height |
Main Profile |
|
CBT |
15m |
5m |
3.87m |
8m |
204x120x4mm(4-channel) |
|
CBT |
20m |
5m |
3.87m |
8.8m |
204x120x4mm(4-channel) |
|
CBT |
25m |
5m |
3.87m |
9.9m |
204x120x4mm(4-channel) |
|
CEBT |
15m |
5m |
3.89m |
7.8m |
256x121x5mm(4-channel) |
|
CEBT |
20m |
5m |
3.89m |
8.9m |
256x121x5mm(4-channel) |
| CEBT | 25m | 5m | 3.89m | 10m | 256x121x5mm(4-channel) |
| CEBT | 30m | 5m | 3.89m | 11.2m | 256x121x5mm(4-channel) |
Materials of outdoor sport
- Frame struss: hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
Features of outdoor sport
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable
- No pole inside, 100% available interior space

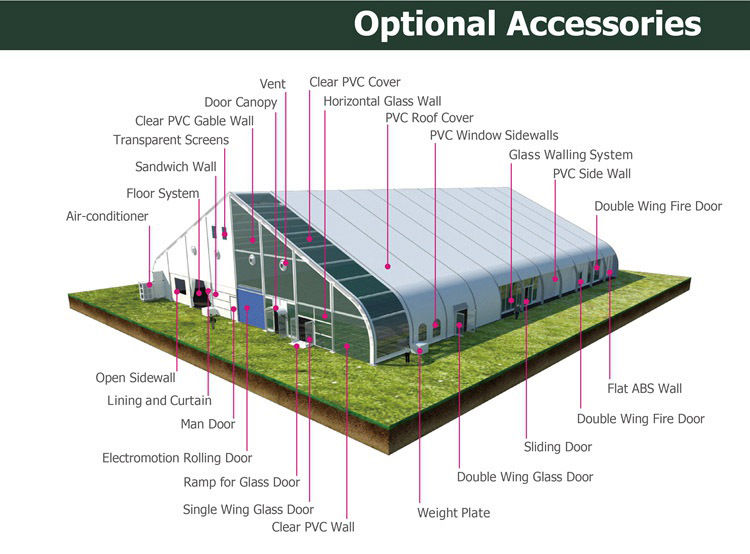

Optional Accessories
Optional accessories for outdoor sport
- Covers: colourful cover, transparent cover, inflatable roof cover
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters (inner roof beam rain gutter or rain gutter between two similar tents)
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
