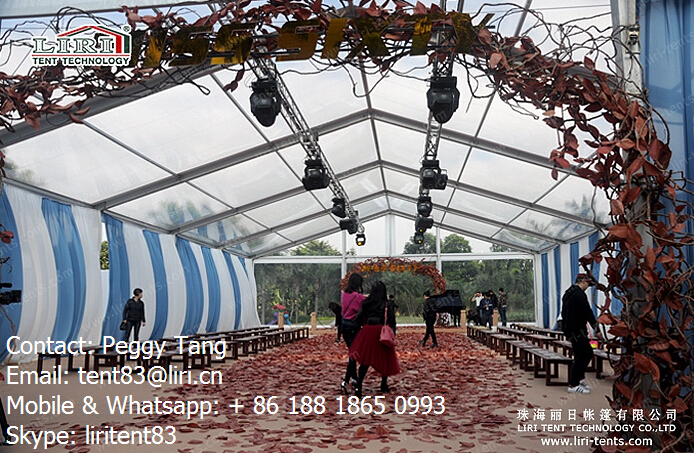

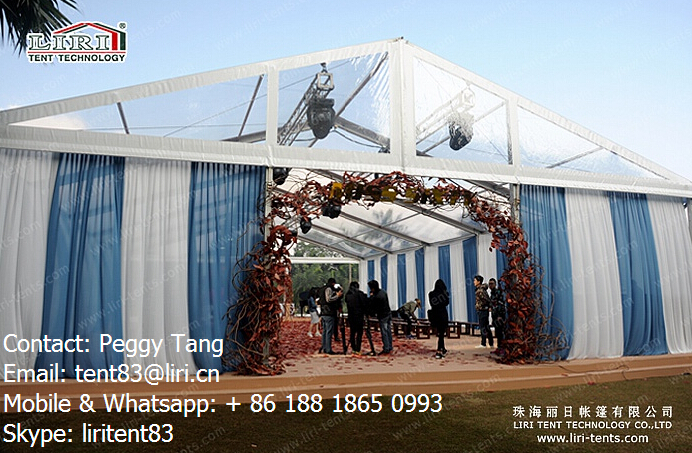

Introduction of Transparent PVC Tent
The clear span of the Transparent PVC Tent -ETSeries is 10m, 12m, 15m, 16m, and 18m. The main profile size is 204x120x4mm and the modular structure can be increased and decreased in bay distance of 5m according to the clients’ request. The main frameworks (upright support and roof beam) are manufactured of high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102B1, M2.
There are also many different styles sand shapes like square, hexagonal, octagonal, decagonal, dodecagonal, and double decker. All clear span big ten structures are available with a complete range of accessories. These accessories include sidewalls with clear windows, ground anchors, weight plate, lining, glass wall system, ABS hard wall system, etc.
Liri Event Tent Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| ET | 8m/26.2′ | 5m/16.4′ | 3.3m | 4.53m | 152x119x3.5mm(4-channel) |
| ET | 10m/32.8′ | 5m/16.4′ | 3.3m | 4.85m | 152x119x3.5mm(4-channel) |
| ET | 12m/39.4′ | 5m/16.4′ | 3.3m | 5.16m | 152x119x3.5mm(4-channel) |
| ET | 15m/49.2′ | 5m/16.4′ | 3.3m | 5.62m | 152x119x3.5mm(4-channel) |
| ET | 16m/52.5′ | 5m/16.4′ | 3.3m | 5.72m | 152x119x3.5mm(4-channel) |
| ET | 18m/59′ | 5m/16.4′ | 3.3m | 6.01m | 152x119x3.5mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m…Customized size or shape is available. | |||||
Optional Accessories of Transparent PVC Tent
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Packing of Transparent PVC Tent
