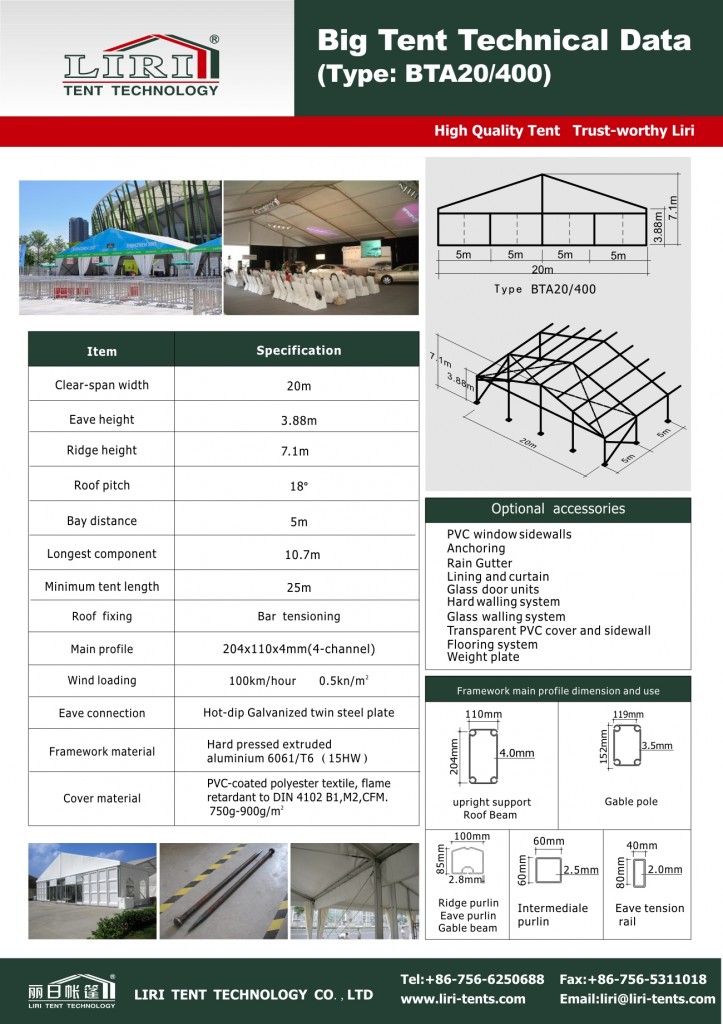

Specification of 20×40 Party Tents for Sale
The clear span of the Big Tent-BTA series is from 10m to 25m and the main profile size is 204x110x4mm. This type of tent series are modular structures and can be increased or decreased in bay distance of 5m according to the clients’ requirements. The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102B1, M2. The tent can resist up to 100km/hr wind loading.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| BT | 10m/32.8′ | 5m/16.4′ | 3.88m | 5.53m | 204x120x4mm(4-channel) |
| BT | 12m/39.4′ | 5m/16.4′ | 3.88m | 5.83m | 204x120x4mm(4-channel) |
| BT | 15m/49.2′ | 5m/16.4′ | 3.88m | 6.3m | 204x120x4mm(4-channel) |
| BT | 20m/65.6′ | 5m/16.4′ | 3.88m | 7.1m | 204x120x4mm(4-channel) |
| BT | 21m/68.9′ | 5m/16.4′ | 3.88m | 7.25m | 204x120x4mm(4-channel) |
| BT | 25m/82′ | 5m/16.4′ | 3.88m | 7.88m | 204x120x4mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m…Customized size is available. | |||||
Material Description of 20×40 Party Tents for Sale
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can’t stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Accessories of 20×40 Party Tents for Sale
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
